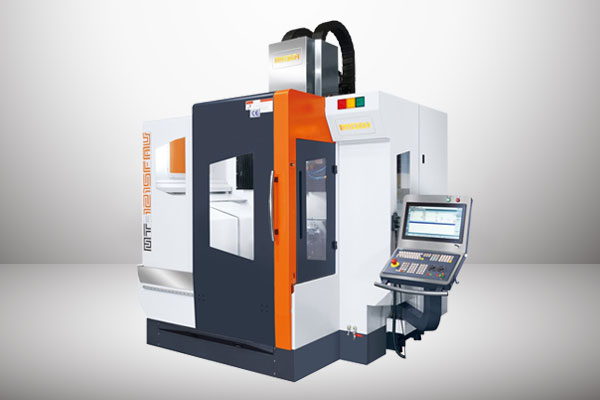

Model | MT-1215FAV | ||
---|---|---|---|
Travel | X Axis | mm | 320 |
Y Axis | mm | 700 | |
Z Axis | mm | 450 | |
Table top surface to spindle nose | mm | 60-510 | |
Table | Size | mm | Ø250 |
T-slot (width x no x distance) | 12H7 | ||
Height of the table surface from the floor A=0° | 1030 | ||
Max. Workpiece Size | Ø300 x 385 | ||
Distance from spindle nose to table A=0° | mm | 60-510 | |
Distance from spindle nose to table A=90° | mm | 60-510 | |
Min. Index unit. | deg. | 0.001 | |
Rotating angle | deg. | C-axis 360°(continuous), A-axis +30°~-120° | |
Permissible work load | kg | 0°/170kg, 90°/140kg | |
Spindle | Spindle holder | Built in spindle | |
Spindle speed | rpm | 16000 | |
Taper | BBT40 | ||
Feed | Cutting feedrate X / Y / Z (G01) | m/min | 24 |
Rapid feedrate X / Y / Z (G0) | m/min | 24 | |
Max. table speed | rpm | C-axis 50, A-axis 25 | |
Motors X / Y / Z Axis | kw | 4.0 / 7.0 / 7.0 | |
ATC | Type | Umbrella | |
Tool magazine capacity | T | 16 | |
Max. tool dia. | mm | 100 | |
Max. Tool dia. (No Adjacent Tool) | mm | 180 | |
Max. tool length | mm | 300 | |
Max. tool weight | kgs | 7 | |
Accuracy | Indexing accuracy X / Y / Z Axis | 0.005 | |
Repeatability X / Y / Z Axis | ±0.002 | ||
Indexing accuracy | sec | C-axis 15s, A-axis 20s | |
Repeatability | sec | C-axis 4s, A-axis 4s | |
Other | Machine space ( L x W ) | mm | 2325 x 2120 |
Coolant tank capacity | L | 230 | |
Net weight | kgs | 8000 | |
Total power consumption | KVA | 30 | |
Air source required | kg/cm2 | 6 |
