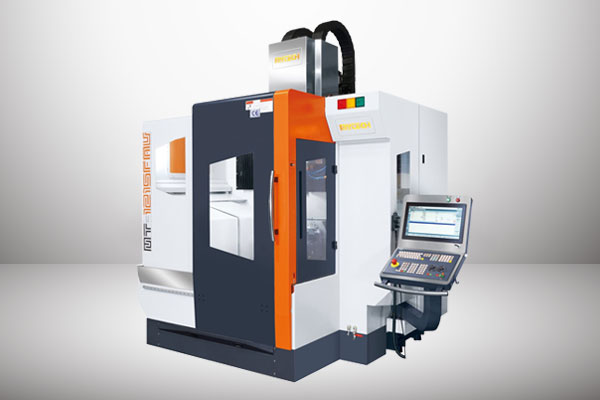

5-axis Machining Center

MT-1215FAV

BBT40
X320 / Y700 / Z450

Model			MT-1215FAV
Travel	X Axis	mm	320
	Y Axis	mm	700
	Z Axis	mm	450
	Table top surface to spindle nose	mm	60-510
Table	Size	mm	Ø250
	T-slot (width x no x distance)		12H7
	Height of the table surface from the floor A=0°		1030
	Max. Workpiece Size		Ø300 x 385
	Distance from spindle nose to table A=0°	mm	60-510
	Distance from spindle nose to table A=90°	mm	60-510
	Min. Index unit.	deg.	0.001
	Rotating angle	deg.	C-axis 360°(continuous), A-axis +30°~-120°
	Permissible work load	kg	0°/170kg, 90°/140kg
Spindle	Spindle holder		Built in spindle
	Spindle speed	rpm	16000
	Taper		BBT40
Feed	Cutting feedrate X / Y / Z (G01)	m/min	24
	Rapid feedrate X / Y / Z (G0)	m/min	24
	Max. table speed	rpm	C-axis 50, A-axis 25
	Motors X / Y / Z Axis	kw	4.0 / 7.0 / 7.0
ATC	Type		Umbrella
	Tool magazine capacity	T	16
	Max. tool dia.	mm	100
	Max. Tool dia. (No Adjacent Tool)	mm	180
	Max. tool length	mm	300
	Max. tool weight	kgs	7
Accuracy	Indexing accuracy X / Y / Z Axis		0.005
	Repeatability X / Y / Z Axis		±0.002
	Indexing accuracy	sec	C-axis 15s, A-axis 20s
	Repeatability	sec	C-axis 4s, A-axis 4s
Other	Machine space ( L x W )	mm	2325 x 2120
	Coolant tank capacity	L	230
	Net weight	kgs	8000
	Total power consumption	KVA	30
	Air source required	kg/cm²	6

* All specification , dimension and design characteristics shown in this catalogue are subject to change without notice.
